نام قطعه

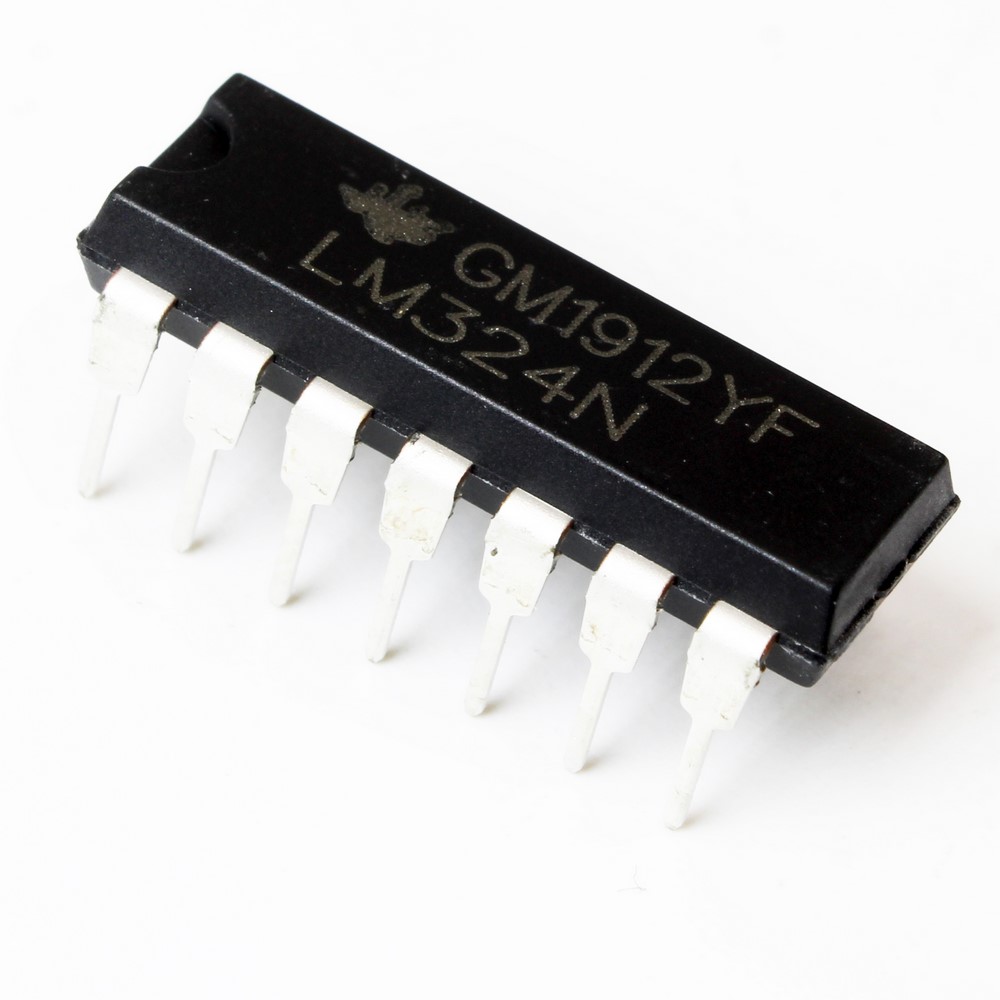

LM324N
نام کارخانهای
LM324N
تعداد در بسته
25
عدد
برند
Texas Instruments
پکیج
DIP-14
نوع قطعه
کپی
بستهبندی
Tube
عنوان گروه
دیتاشیت
توضیحات
QUAD,LOW POWER OPAMP
Low Power Quad Operational Amplifiers, Wide Gain Bandwidth/Range Single-Dual,Input Offset,375ma,1.3mhz
| Features | ||
|---|---|---|
| Number of Channels | 4 Channel | |
| Output Current | 40 mA | |
| Gain Bandwidth Product (fT) | 1.2 MHz | |
| Supply Type | Single|Dual Supply | |
| Slew Rate | 500 mV/µs | |
| Input Bias Current | 250 nA | |
| Input Offset Voltage | 7 mV | |
| Input Type | Rail-to-Rail | |
| Mounting Style | Through Hole | |
| Supply Current | 175 µA | |
| Supply Voltage (Min) | 3 V | |
| Supply Voltage (Max) | 32 V | |
| Minimum Operating Temperature | 0 C° | |
| Maximum Operating Temperature | +70 C° | |
| Brand | Texas Instruments | |
| Package | DIP-14 | |
موجود
ریال
31200
تحویل 8 روزه
| 30,800 | +20 |
| 30,500 | +30 |
| 30,200 | +50 |
| 29,900 | +80 |
| 29,600 | +100 |
