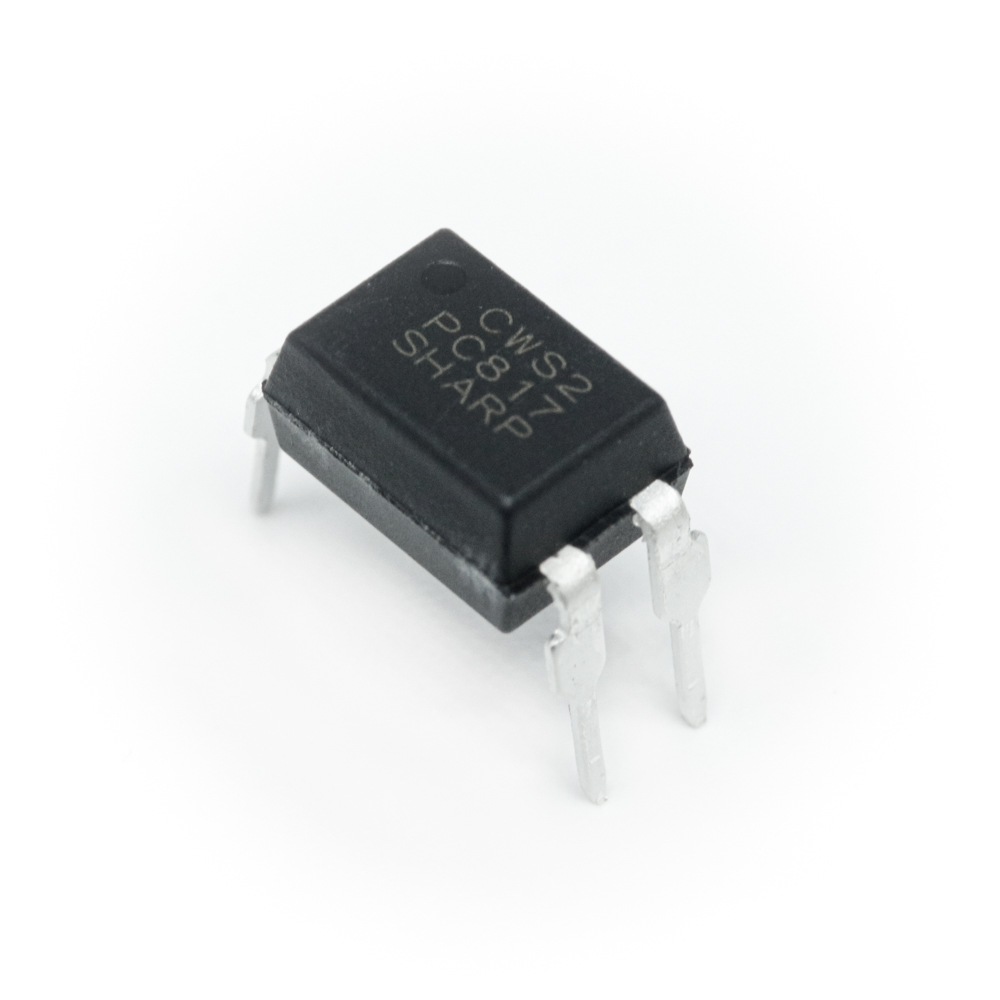

نام قطعه
PC817
نام کارخانهای
PC817X3NSZ2B
تعداد در بسته
100
عدد
برند
SHARP Corporation
پکیج
DIP-4
بستهبندی
Tube
عنوان گروه
دیتاشیت
توضیحات
اپتوکوپلر تک
Single Channel High Density Mounting Type Photocoupler , Isolation Voltage, 5000 VRMS , 4PIN
| Features | ||
|---|---|---|
| Number of Channels | 1 Channel | |
| Forward Current (If) | 50 mA | |
| DC Collector Current | 50 mA | |
| Output Type | NPN Phototransistor | |
| Collector Emitter Voltage (VCEO) | 35 V | |
| Reverse Voltage (Vrrm) | 6 V | |
| Forward Voltage (Vf) | 1.4 V | |
| Isolation Voltage | 5 kVrms | |
| Current Transfer Ratio (Min) | 300 % | |
| Mounting Style | Through Hole | |
| Minimum Operating Temperature | -30 C° | |
| Maximum Operating Temperature | 100 C° | |
| Brand | SHARP Corporation | |
| Package | DIP-4 | |
موجود
ریال
39000
تحویل 8 روزه
| 38,600 | +100 |
| 38,200 | +200 |
| 37,800 | +300 |
| 37,400 | +400 |
| 37,000 | +500 |
