نام قطعه

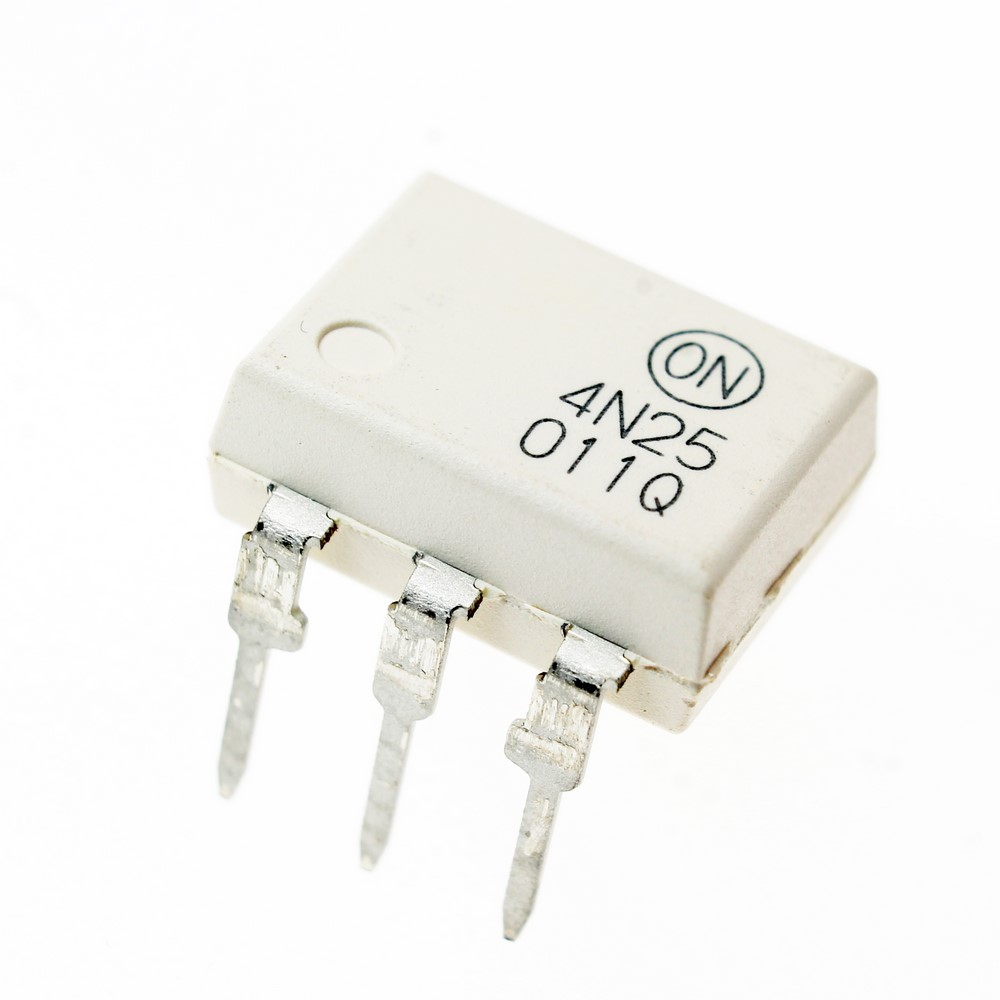

4N25M
نام کارخانهای
4N25M
تعداد در بسته
50
عدد
برند
ON Semiconductor
پکیج
DIP-6
بستهبندی
Tube
عنوان گروه
دیتاشیت
توضیحات
اپتوترانزیستور تک
Single Channel General Purpose Phototransistor Optocouplers , Digital Logic Inputs , Isolation Voltage :7500V , 6PIN
| Features | ||
|---|---|---|
| Number of Channels | 1 Channel | |
| Forward Current (If) | 60 mA | |
| Reverse Voltage (Vrrm) | 6 V | |
| Output Type | NPN Phototransistor | |
| Collector Emitter Voltage (VCEO) | 30 V | |
| Forward Voltage (Vf) | 1.5 V | |
| Isolation Voltage | 7.5 kVrms | |
| Current Transfer Ratio (Min) | 20 % | |
| Mounting Style | Through Hole | |
| Minimum Operating Temperature | -55 C° | |
| Maximum Operating Temperature | 100 C° | |
| Brand | ON Semiconductor | |
| Package | DIP-6 | |
